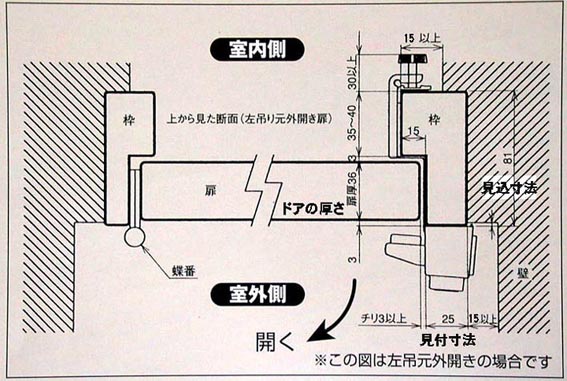

Illustration for fixing the HINAKA anticrime lock to the door

Doors good for the HINAKA anticrime lock: BL certified standard doors (for public housing) opening out , and no screendoors.

Measuring the door frame is extremely important.

Face measure of the door frame : 25 mm

Thickness of the door frame seen from the outside

Depth of the door frame : 80 - 81 mm

Depth of the door frame

Thickness of the door : 35 - 36 mm

3 mm or more chink between the door and the door frame is necessary.
